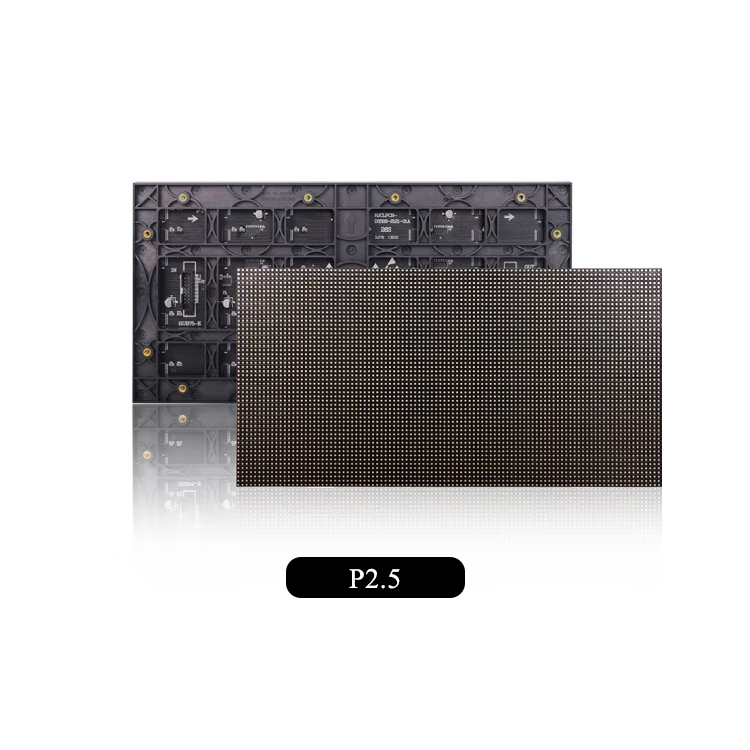

The outdoor LED module is designed for outdoor environments. Caiyi uses high-brightness lamp beads, high-quality waterproof materials and stable driver ICs to achieve all-weather operation and high-definition image quality output. It supports a variety of pixel pitches (P2 / P2.5 / P3.06 ​​/ P3 / P4 / P5 / P6.67 / P8 / P10) to meet different viewing needs from close to long distances. It is widely used in large-scale display projects such as commercial advertising, stadiums, municipal propaganda, outdoor stages, etc.

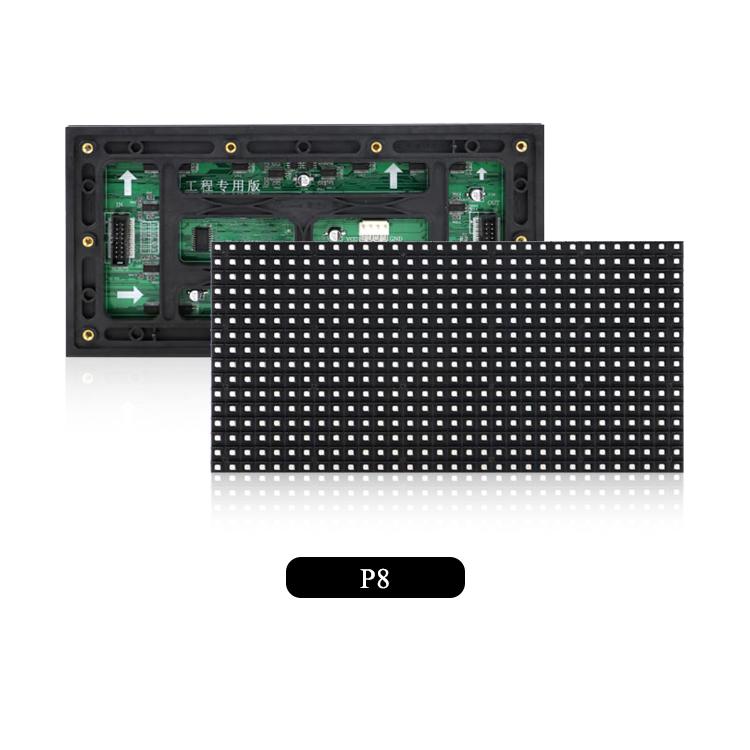

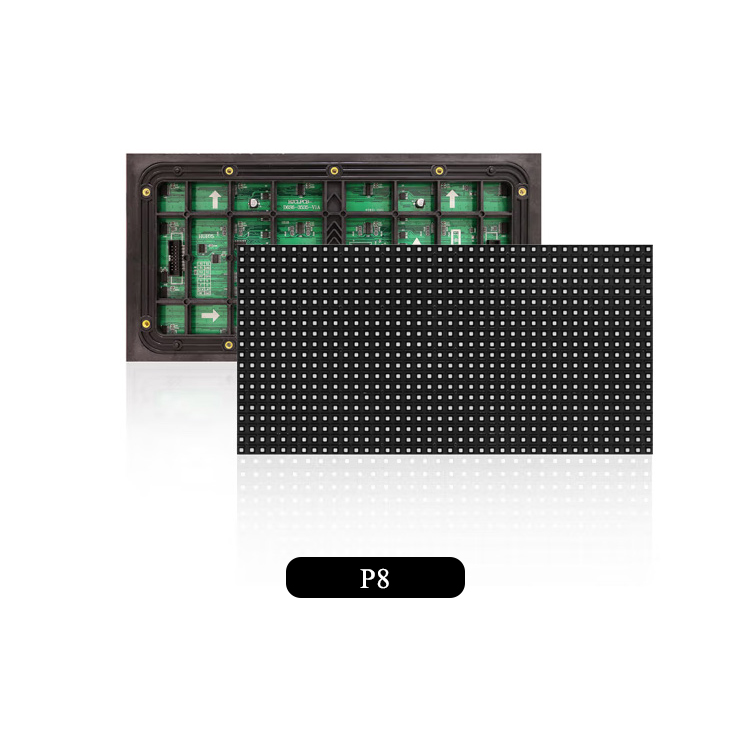

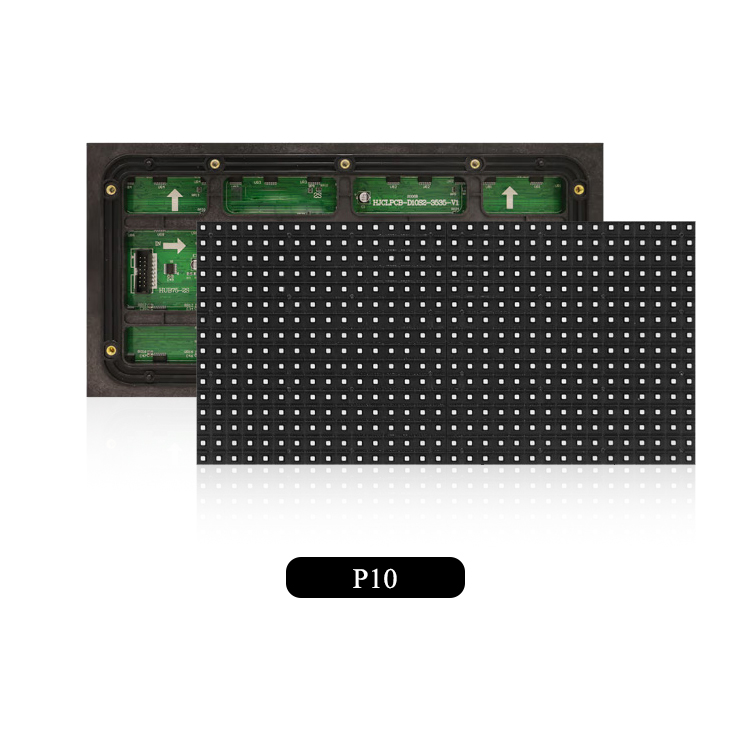

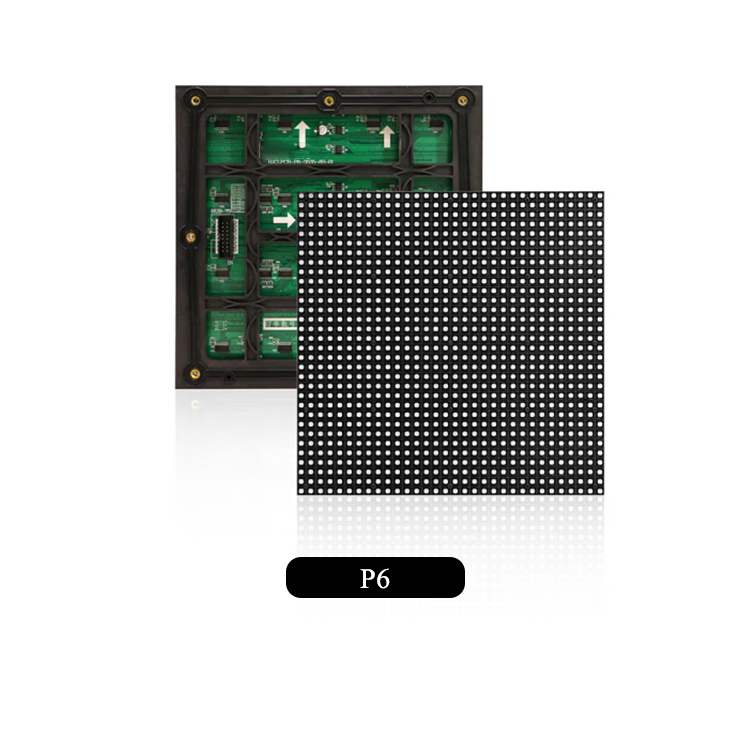

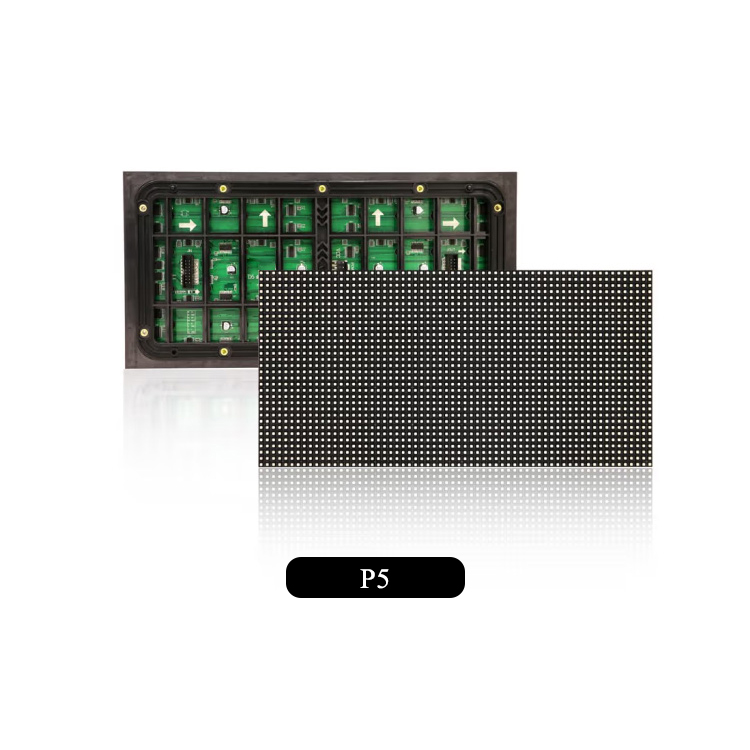

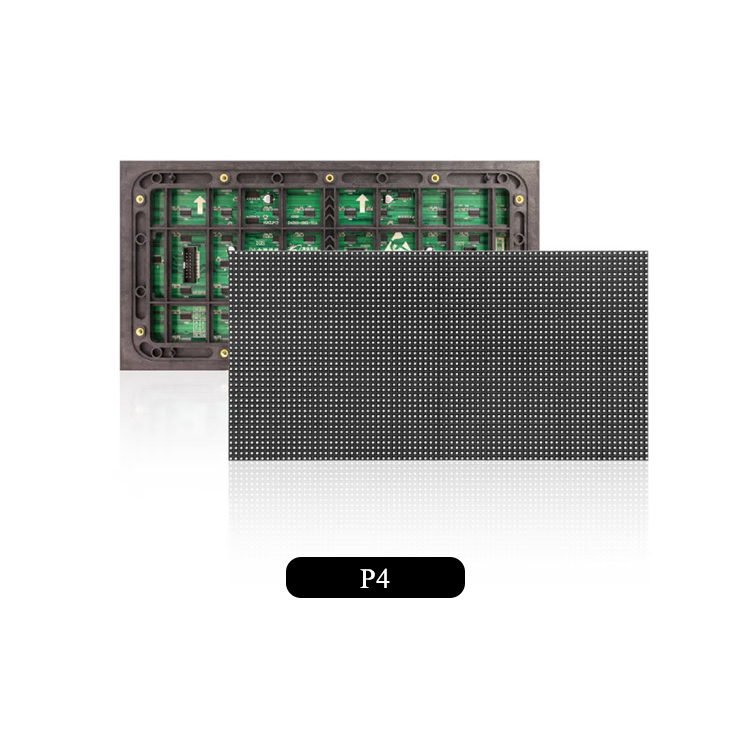

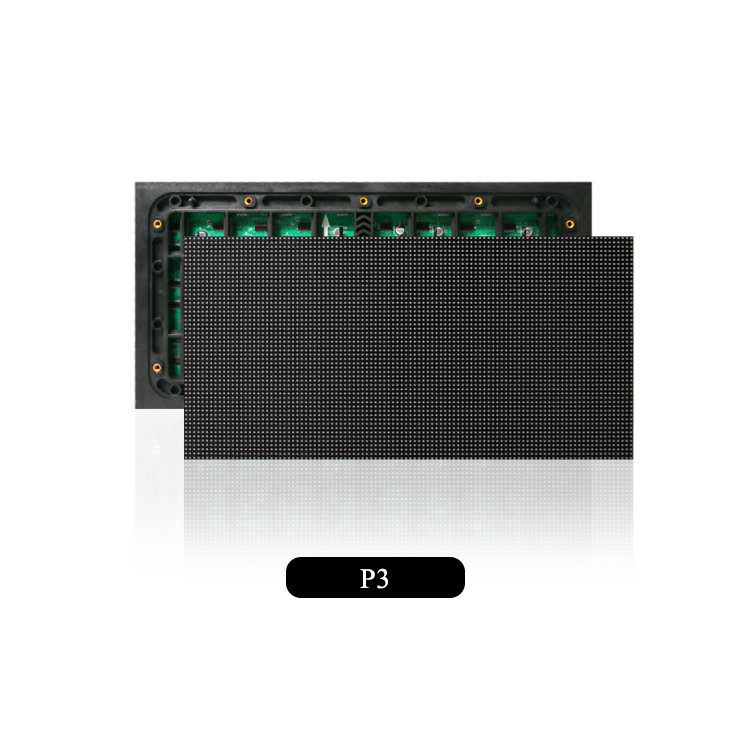

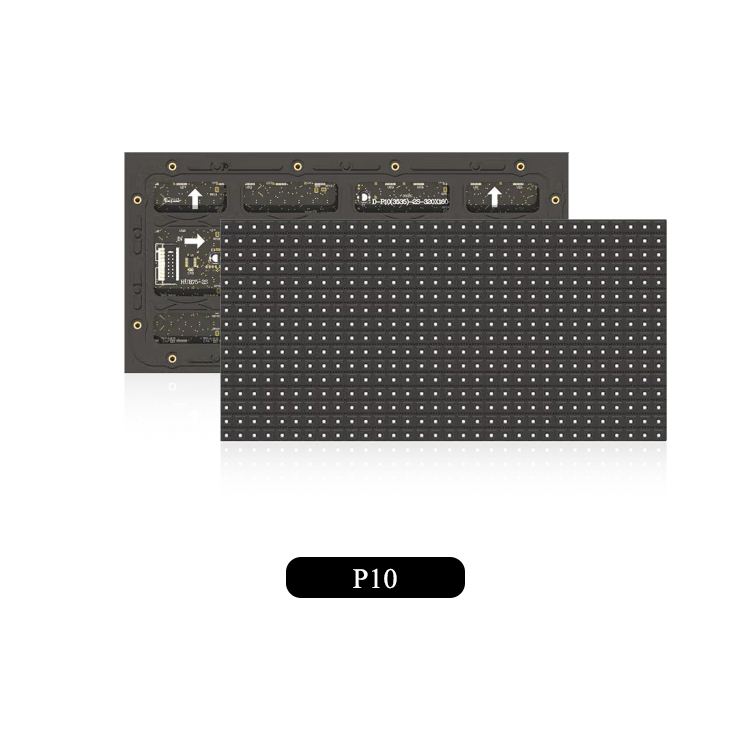

Pixel Pitch(mm):P2/P2.5/P3.06/P3/P4/P5/P6.67/P8/P10

Pixel composition: 3-in-1 SMD (SMD1921 / SMD2727 / SMD3535 depending on dot pitch)

Module size: supports customized size and standard modules (such as 320x160mm, 250x250mm, 192x192mm, etc.)

Item Parameter Description

Protection Level: IP65 front/IP54 rear, suitable for various outdoor climates

Display Color Full Color: 16.7M colors, high restoration

Brightness: ≥5000-7000 cd/m² (depending on the model)

Refresh Rate: ≥1920Hz (optional 3840Hz)

Grayscale Level: 14~16bit, high contrast to restore true colors

Viewing Angle: Horizontal 160° / Vertical 140°

Operating Temperature: range -20℃ ~ +60℃, all-weather operation

Control Mode:Synchronous/asynchronous control, support 4G/Wi-Fi/USB multiple methods

Flatness ≤0.1mm, ensure seamless splicing

Module Maintenance Method Front/rear maintenance optional, easy to install and maintain

Life ≥100,000 hours

High Brightness, Waterproof And Sun-Proof

ultra-bright lamp beads + professional packaging technology, clearly visible in sunlight, IP65 protection, stable and weather-resistant

Energy-Saving Drive System

adopts high-efficiency power supply and low-power lamp bead design to reduce operating costs

High-Quality Material Packaging

selected PCB, power supply, waterproof glue, adapt to high temperature/humidity/cold/dust and other harsh environments

Modular Splicing Design

supports a variety of sizes and dot pitch combinations, flexible adaptation to various screen shapes

Remote Control And Real-Time Update

supports intelligent control system, can remotely publish advertisements and update content in real time

Commercial billboards (airports, high-speed rail stations, business district buildings)

Smart city information release screens (municipal squares, major traffic arteries)

Score screens at sports stadiums, fence screens

Outdoor stages, concerts, celebrations and event background screens

Highway LED guidance screens, service area promotional screens

Choose Hunan CaiYi Technology To Customize Your Exclusive LED Solution

Hunan Caiyi Technology focuses on the field of LED display screens, has rich experience in R&D and project implementation, and is committed to providing efficient and reliable display solutions for customers in different industries.

Whether it is a mechanical structure screen, a customized special-shaped screen, or an LED display device suitable for outdoor, stage, commercial and other scenes, we can tailor it according to actual needs to ensure both effect and performance.

We not only provide products, but also provide overall solutions, from solution design to installation and commissioning, professional services throughout the process, to help your project become more outstanding.

Contact us now to start your LED customization journey.
